RFID Tag HF

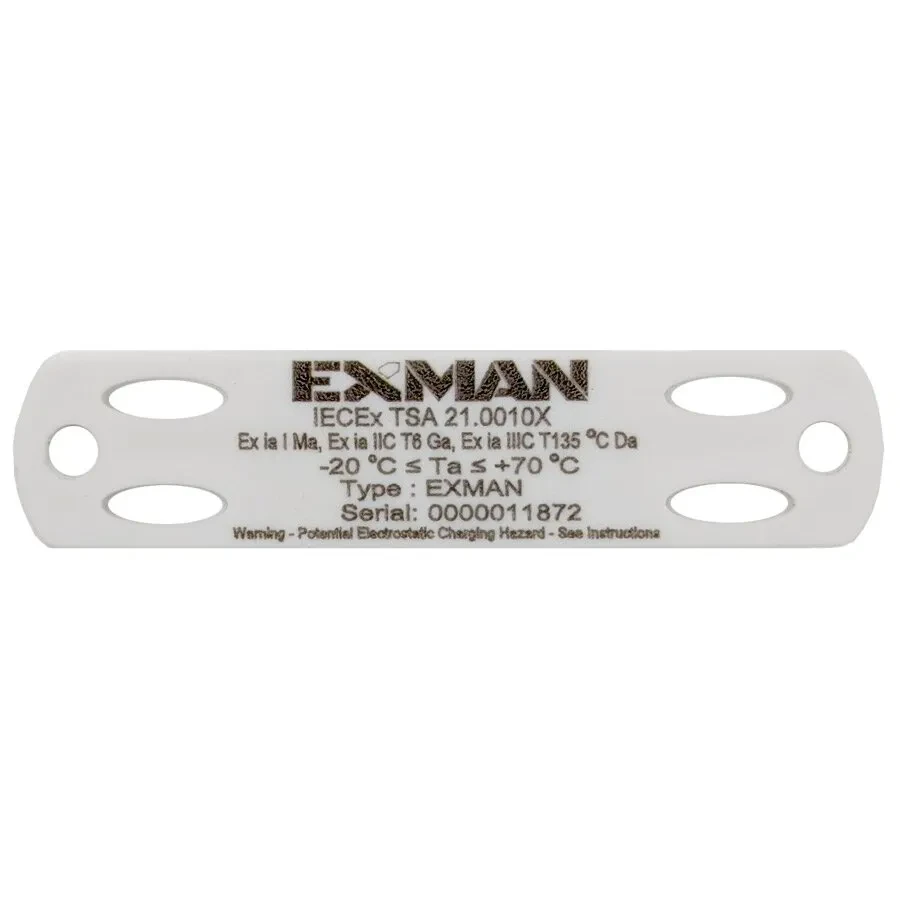

Explore the cutting-edge HF EXMAN RFID Tag - MIFARE UL

Exclusively crafted for the dynamic needs of the Oil and Gas industry. Designed with versatility in mind, this RFID tag boasts multiple attachment points, catering to a wide spectrum of applications.

Dive into a world of customization with the EXMAN, available in a vibrant array of colors – White, Blue, Red, Green, and Yellow. These colors offer potential use in Hazardous Areas, with suggested applications such as:

    White: General EEHA Equipment
    Blue: Intrinsically Safe
    Green: Fire & Gas
    Red: SIL (Safety Integrity Level)
    Yellow: Lighting

(Note: Colors are suggested options)

Rest assured, the EXMAN RFID has achieved certification for Group I, II & III, ensuring comprehensive coverage for all your application needs. Elevate your Oil and Gas operations with the reliability and adaptability of EXMAN RFID – where innovation meets safety

Electrical Specifications:

• Air Interface Protocol: ISO / IEC 15693
• Operational Frequency: 13.56 MHz
• Chip Options: Mifare 1K, ICODE SLIX-L, Mifare Ultralight
• Expected Lifetime: Up to 10 years in normal conditions
• Ingress Protection Rating: IP66
• Read Range: Up to 35mm

Physical and Mechanical Specification:

• Product Name: EXMAN Tag
• Product Code: EXMAN
• Dimensions: 65 x 15 x 3mm
• Hole Diameter: Ø 9.6mm
• Weight: 10 g
• Encasement: Polypropylene and Polycarbonate
• Colour Options: Any colour can be used
• Quality Assurance: 100% reader tested

Chemical Resistance:

• Resistant to continuous exposure to salt water for 2 hours.
• Resistant to continuous exposure to motor oil for 2 hours.
• Additionally, abrasion resistant against HCL and IPA.

Additional Services:

• Pre-encoding available on request

Certificates & Markings

• IECEx TSA 21.0010X


Temperature Range:

• -20°C to 70°C
