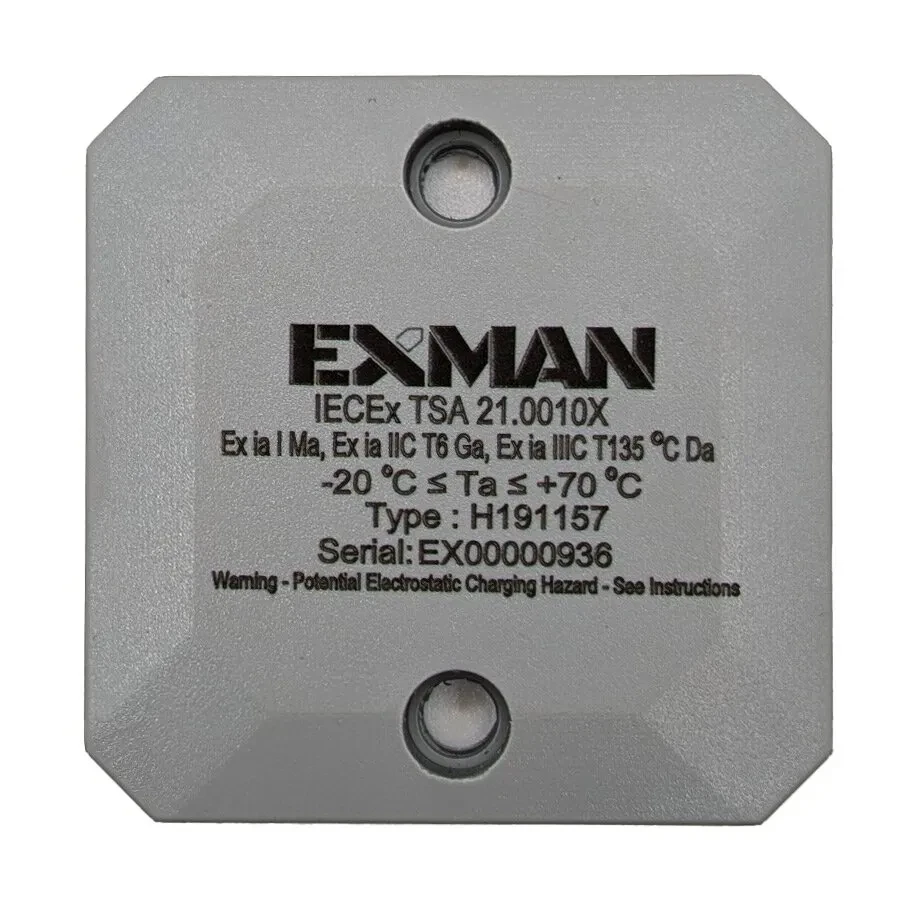

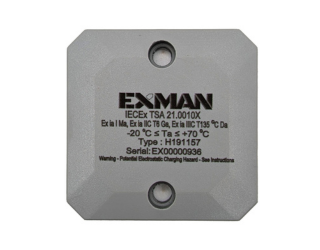

HF Metallica RFID Tag

$890.60 AUD
Approx $576.22 USD

Choose Type & Qty:

We accept Mastercard and Visa. All goods are shipped via Australia Post

The Metallica RFID features three semiconductor options:

Mifare Ultralight
Mifare 1K
ICODE SLIX-L

Discover the Metallica Tag, an advanced RFID Tag tailored for precision and resilience this tag ensures longevity and robust performance.

The Metallica RFID has achieved certification for Group I, II & III, ensuring comprehensive coverage for all your application needs. Elevate your Mining and Oil & Gas operations with the reliability and adaptability of this RFID Tag – where innovation meets safety

Electrical Specifications

Air Interface Protocol: ISO / IEC 14443 Type A
Operational Frequency: 13.56 MHz
Chip Options: Mifare Ultralight, Mifare 1K, ICODE SLIX-L
Product Code: H191157 / H191107
Read Range: Up to 35 mm
Write Endurance: 10,000 cycles
Data Retention: 5 years
Ingress Protection Rating: IP67
Attachment: Riveting/Screw/Adhesive
Applicable surface: Metal/Plastic

Physical and Mechanical Specification

Dimensions: 52 x 52 x 10 ± 0.5 mm
Hole Diameter: Ø 5.0 ± 0.2 mm
Weight: 25 g
Encasement: Polypropylene and Polycarbonate
Colour Options: Any colour available
Quality Assurance: 100% reader tested

Chemical Resistance

Resistant to continuous exposure to salt water for 2 hours
Resistant to continuous exposure to motor oil for 2 hours
Abrasion-resistant against HCL and IPA

Certificates and Markings

IECEx TSA 21.0010X

Temperature Range:

-20°C to 70°C

Additional Services:

Pre-encoding available upon request

Brochure Download

Click to download

Certification Download
