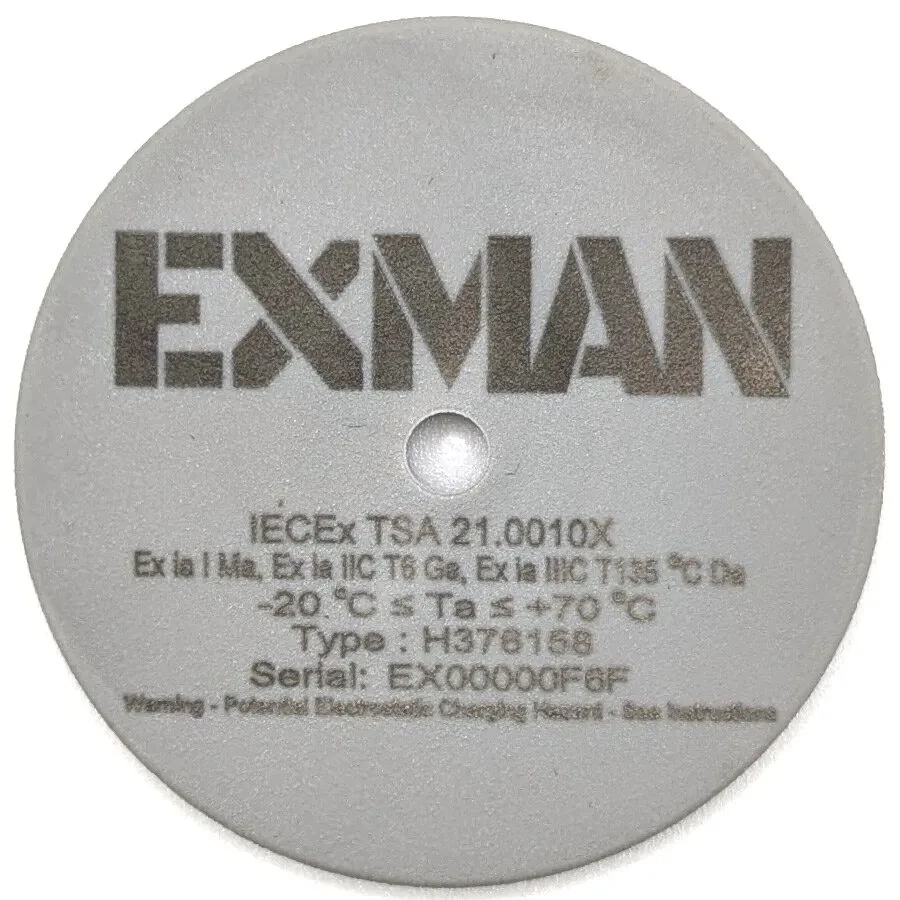

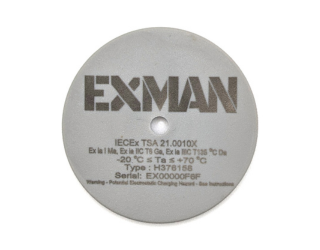

HF 50mm Epoxy Disc RFID Tag

$810.00 AUD
Approx $524.07 USD

The 50mm Epoxy Disc RFID features two semiconductor options:

ICODE SLIX-L
Mifare Ultralight

Introducing the HF 50mm Epoxy Disc RFID Tag, a cutting-edge solution for your tracking needs. Designed with precision, this RFID tag boasts robust electrical specifications and impressive physical attributes. Whether you're managing inventory or tracking assets, this tag ensures reliable performance in diverse conditions. Dive into its features and discover why it stands out in the world of RFID technology.

The 50mm Epoxy Discl RFID has achieved certification for Group I, II & III, ensuring comprehensive coverage for all your application needs. Elevate your Mining and Oil & Gas operations with the reliability and adaptability of this RFID Tag – where innovation meets safety

Electrical Specifications:

Air Interface Protocol: ISO / IEC 15693
Operational Frequency: 13.56 MHz
Chip Options: Mifare Ultralight, ICODE SLIX-L
Expected Lifetime: Up to 10 years in normal conditions
Ingress Protection Rating: IP66
Read Range: Up to 35 mm

Physical and Mechanical Specification:

Dimensions: Ø 50 x 3.5 mm
Product Name: Epoxy Disc Tag 50 mm
Weight: 10 g
Encasement: Polypropylene and Polycarbonate
Hole Diameter: Ø 9.6 mm
Colour Options: Any colour can be used
Quality Assurance: 100% reader tested

Chemical Resistance:

Resistant to continuous exposure to salt water for 2 hours
Resistant to continuous exposure to motor oil for 2 hours
Abrasion resistant against HCL and IPA

Additional Services:

Pre-encoding available on request

Certificates & Marking

IECEx TSA 21.0010X

Temperature Range:

-20°C to 70°C

Brochure Download

Click to download

Certification Download
