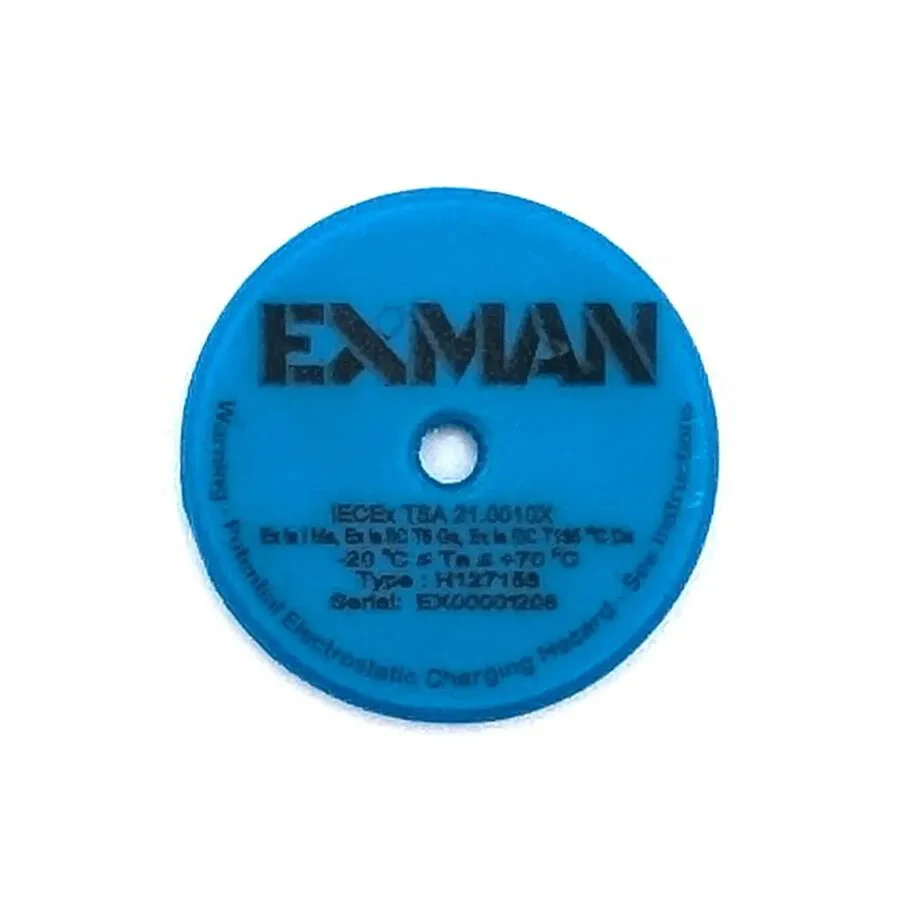

HF 30mm Universal RFID Tag

$735.00 AUD
Approx $475.55 USD

Choose Type & Qty:

We accept Mastercard and Visa. All goods are shipped via Australia Post

The 30mm Universal RFID Tag features three semiconductor options:

Mifare 1K
ICODE SLIX-L
Mifare Ultralight

Designed with versatility in mind, this RFID tag is designed small for all those hard to get to places with a wide spectrum of applications.

The 30mm Universal RFID has achieved certification for Group I, II & III, ensuring comprehensive coverage for all your application needs. Elevate your Mining and Oil & Gas operations with the reliability and adaptability of this RFID Tag – where innovation meets safety.

Electrical Specifications:

Air Interface Protocol: ISO / IEC 14443 Type A
Operational Frequency: 13.56 MHz
Chip Options: Mifare 1K, ICODE SLIX-L, Mifare Ultralight
Read Range: Up to 30 mm
Write Endurance: 10,000 cycles
Product Code: H127158 / H123098 / H123209
Data Retention: 5 years
Ingress Protection Rating: IP66
Attachment Options: Self Adhesive / Rivet
Applicable Surface: Off metal
Expected Lifetime: Up to 5 Years in normal operating conditions

Physical and Mechanical Specification

Dimensions: Ø 30 ± 0.3 mm
Thickness: 3.5 ± 0.3 mm
Hole Diameter: Ø 3.0 ± 0.2 mm
Weight: 3 g
Encasement: Polypropylene and Polycarbonate
Colour: Any colour can be used
Quality Assurance: 100% reader tested

Chemical Resistance:

Resistant to continuous exposure to salt water for 2 hours
Resistant to continuous exposure to motor oil for 2 hours
Additionally, abrasion resistant against HCL and IPA

Additional Services:

• Pre-encoding available on request

Certificates & Markings

IECEx TSA 21.0010X

Temperature Range:

-20°C to 70°C

Brochure Download

Click to download

Certification Download
