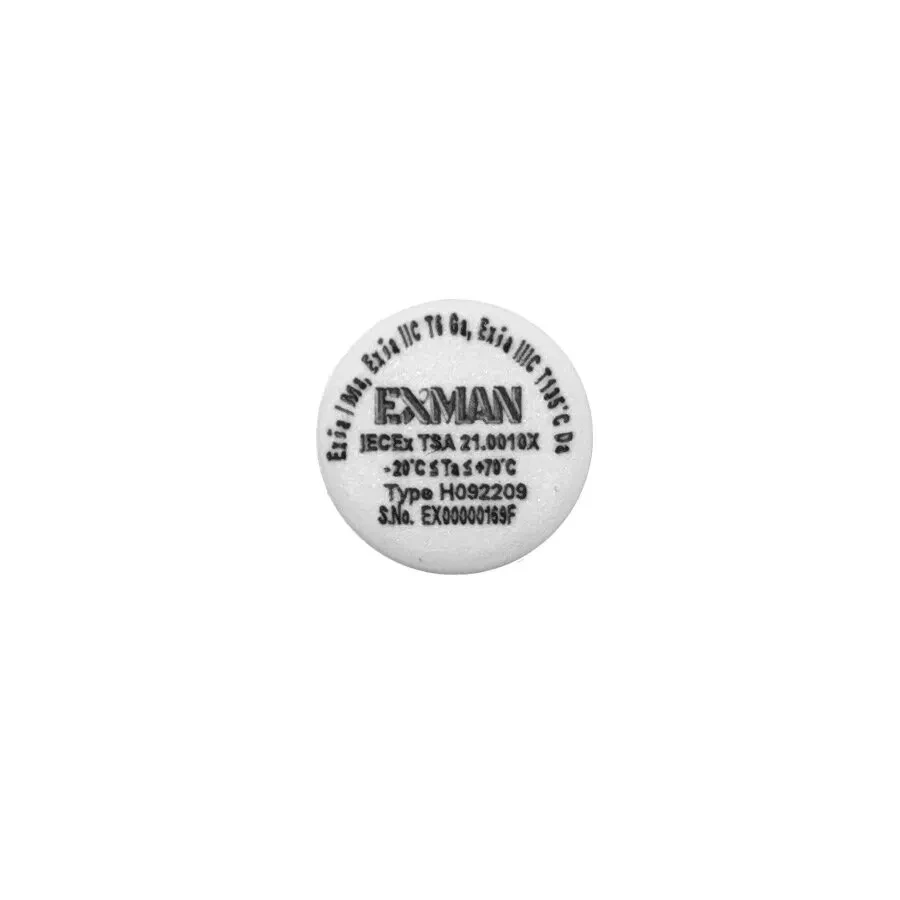

HF 16mm Universal RFID Tag

$700.00 AUD
Approx $452.90 USD

Choose Type & Qty:

We accept Mastercard and Visa. All goods are shipped via Australia Post

The 16mm Button Tag features three semiconductor options

Mifare Ultralight PRE-ORDER NOW
ICODE SLIX-L
SIC5600 PRE-ORDER NOW

Designed with versatility in mind, this RFID tag is designed small for all those hard to get to places with a wide spectrum of applications.

Rest assured, the button tag RFID has achieved certification for Group I, II & III, ensuring comprehensive coverage for all your application needs. Elevate your Mining and Oil & Gas operations with the reliability and adaptability of Button Tag – where innovation meets safety.

Electrical Specifications:

Air Interface Protocol: ISO / IEC 15693
Operational Frequency: 13.56 MHz
Chip Options: Mifare Ultralight, ICODE SLIX-L, SIC5600
Read Range: Up to 35 mm
Ingress Protection Rating: IP66
Expected Lifetime: Up to 5 Years in normal operating conditions

Physical and Mechanical Specifications:

Product Name: Laundry Tag without hole
Product Code: H092209 / H092158 / H092231
Diameter: Ø 16 ± 0.2 mm
Thickness: 3.4mm
Hole Diameter: Ø 1.5± 0.2 mm
Weight: 1 g
Encasement: Polypropylene and Polycarbonate
Colour: Customizable
Quality Assurance: 100% reader tested

Chemical Resistance:

Chemical Resistance: Resistant to salt water and motor oil (2 hours continuous exposure).
Abrasion-resistant against HCL and IPA.

Certifications & Markings:

IECEx TSA 21.0010X

Temperature Range:

-20°C to 70°C

Additional Services:

Pre-encoding available upon request

Brochure Download

Click to download

Certification Download
